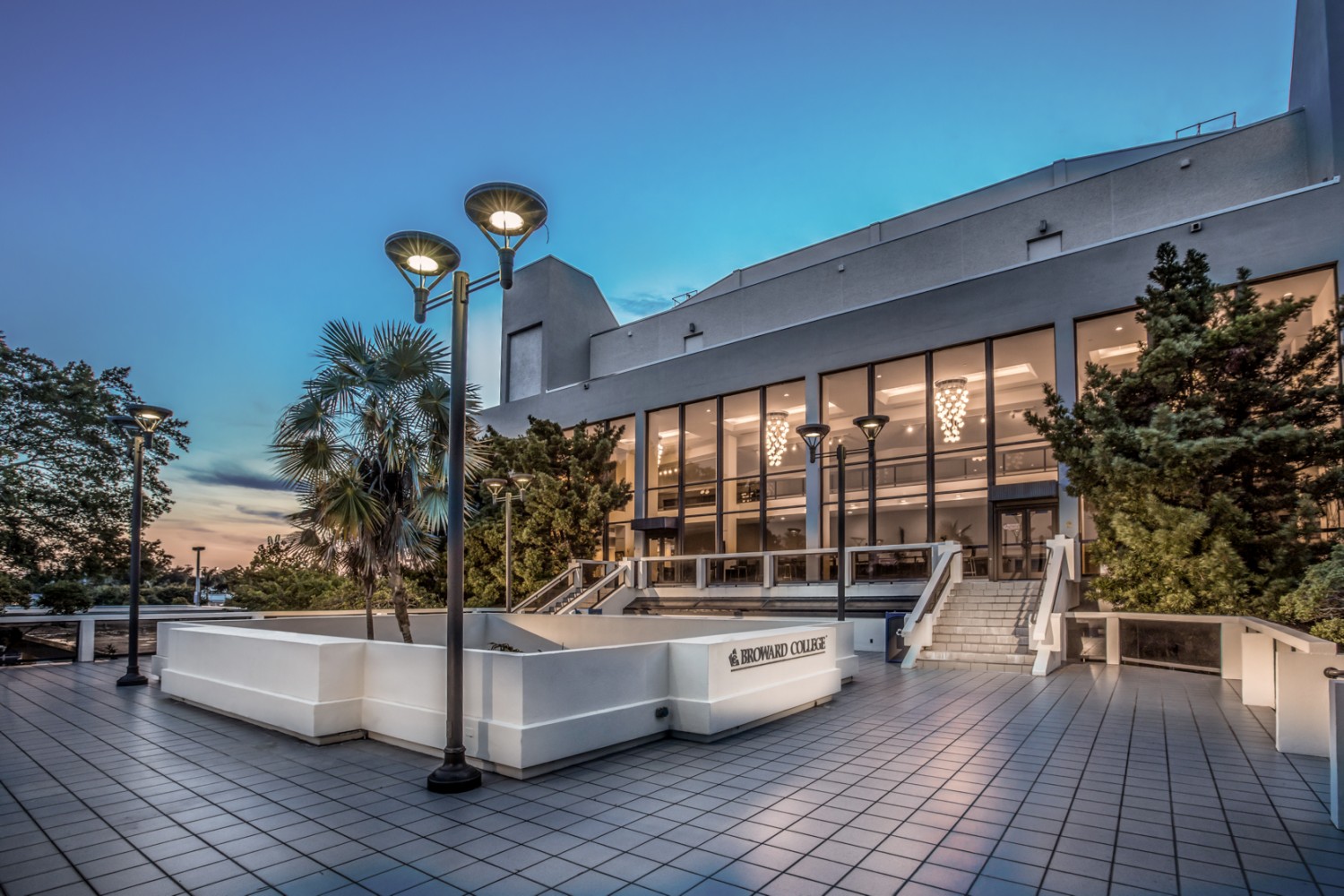

Bailey Hall is a 1,065 seat performing arts center with a box office, 3-story lobby, green room, dressing rooms and scene shop. The theater is on the second floor with a large freight elevator coming from the loading dock.
Stage Width • Centerline to SL wall: 45’ • Centerline to SR wall: 46’8”
Orchestra Pit • Front of pit to apron at centerline: 9’2” • Plaster line to front of pit: 2’ • Pit side to side at apron: 48’ • Pit: 15’ to storage level, 7’ to storage level
Stage Floor • Wood on sleepers on I-beams Load-in, rigging and soft goods
Load-in • Load-in dock is 3’ high located on the ground floor adjacent to the parking area. • Door is 9’2” wide by 9’8” high
Rigging Single purchase counterweight system. Loft block under hung on roof steel. Lock rail and loading bridge located stage left. • Height to loft blocks: 90’ • Maximum high trim: 85’ • Arbor capacity: 1500 LB • Batten length: 80’ • Number of line sets: 39
Soft goods • 1 – Velour grand drape • 3 – Legs (pairs) – half traveler – black velour • 1 – Legs (pairs) – full traveler – black velour • 5 – Borders – 12’ x 60’ – black velour • 1 – Leno-filled scrim – 28’ x 65’ – white (used for mid-stage projection) • 2 – Crossover – 28’ x 65’ – black • 1 – scrim – 30’ x 80’ – white • 1 – scrim – 32’ x 80’ – white muslin
Controls • ETC GIO with 40 submaster wing and interfaced ACN Gateway.
Lighting Positions • First cut - 4’ from proscenium • Second cut – approx. 20’ from proscenium • Third cut - approx. 60’ from proscenium
Follow spots • 2 – Lycian 1275 Follow Spots
Lighting instruments • 72 – Par64 1kW • 25 – ETC Source Four (19 degree) • 60 – ETC Source Four (26 degree) • 30 – ETC Source Four (36 degree) • 12 – ETC Source Four (Zoom) • 12 – Maverick MK2 Spot LED • 32 – Chauvet COLORado TriTour LED PAR
Power Not to be used with house lighting • 1 – 100 amp with camlocks (upstage) • 2 – 600 amp with camlocks (stage right) • 1 – 400 amp with camlocks (stage left)
Audio
Front of House (FOH) • 1 – Yamaha QL5 • 2 – DBX Driverack Venu360 • Tascam SS-CDR200
FOH Installed Speaker Systems • Left and right fills: JBL VRX Line Array • Center: JBL VRX Line Array with Subs • Left and right subwoofers: EAW EP1 (for larger events)
